The FU type chain conveyor is a new product used for horizontal (or inclined ≤ 15 °) transportation of powdery and small granular materials. The chain conveyor has a novel structure, reasonable design, and operates in an energy-saving and long service life manner. The entire material is transported in a sealed box, with minimal dust spillage. The conveyor chain rolls on the track with less wear, and its performance in conveying powdery and small granular materials is significantly better than other conveying equipment such as screw conveyors and buried scraper conveyors. Since its launch in the market, it has received high praise from users and has been widely used in industries such as building materials, chemicals, thermal power, grain processing, and mining.
Product features of FU type chain conveyor
- Large conveying capacity, up to 6m3/h to 500m3/h;
- Low energy consumption during transportation, utilizing the internal friction of the material as the driving force to propel the material forward, saving 40-50% electricity compared to screw conveyors;
- Sealed and fully sealed casing ensures minimal dust leakage;
- Long service life, specially ordered conveyor chains are made of steel and undergo heat treatment, with a normal service life of over 5 years;
- Flexible process layout, allowing for multiple points of material input and output;

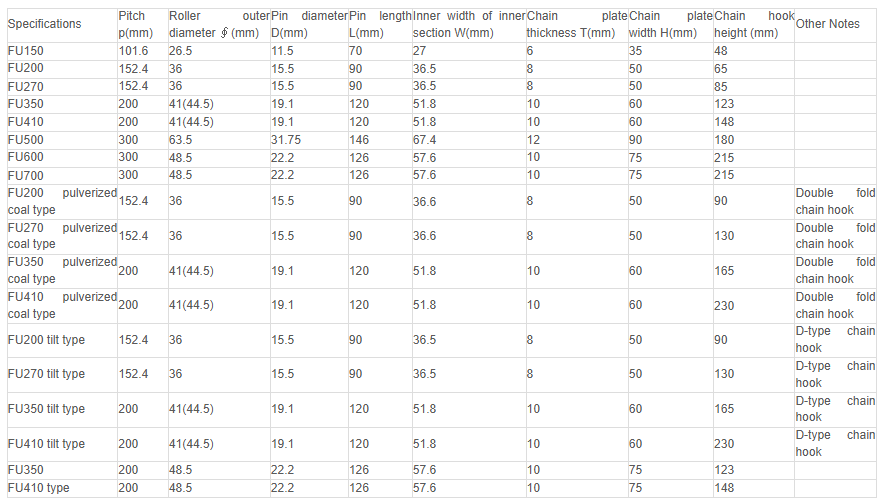

- The series includes FU150, FU200, FU270, FU350, FU410, and FU500 (numbers indicate the width of the conveyor slot).
